Inicio Transformador MEANWELL Entrada 85-264VAC Salida Aislamiento 3750VAC

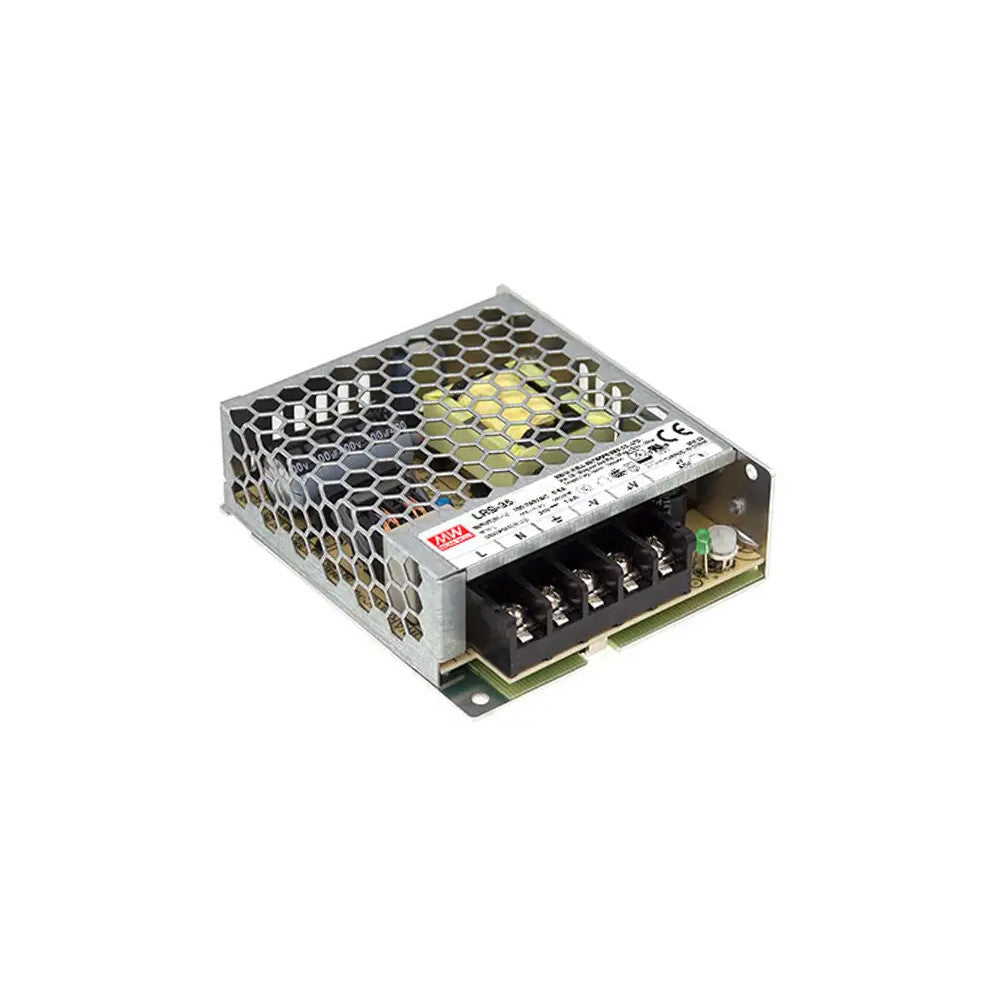

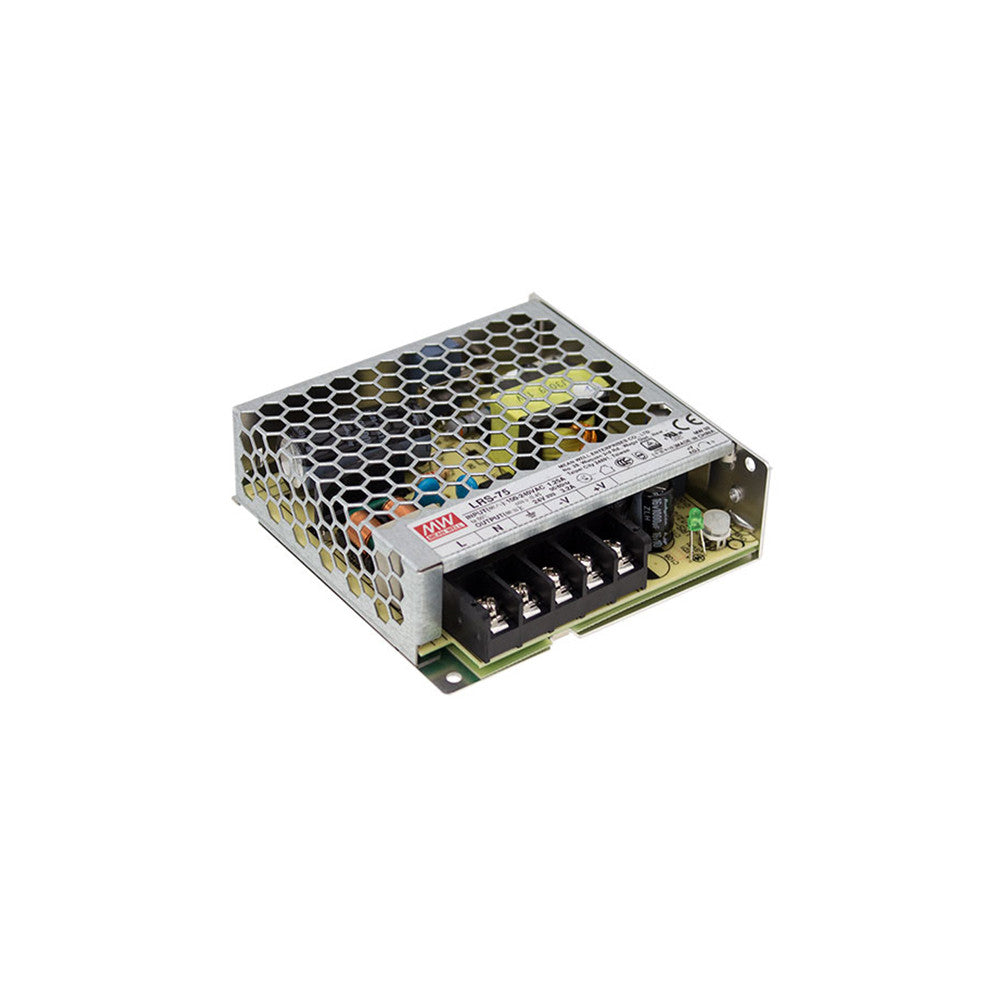

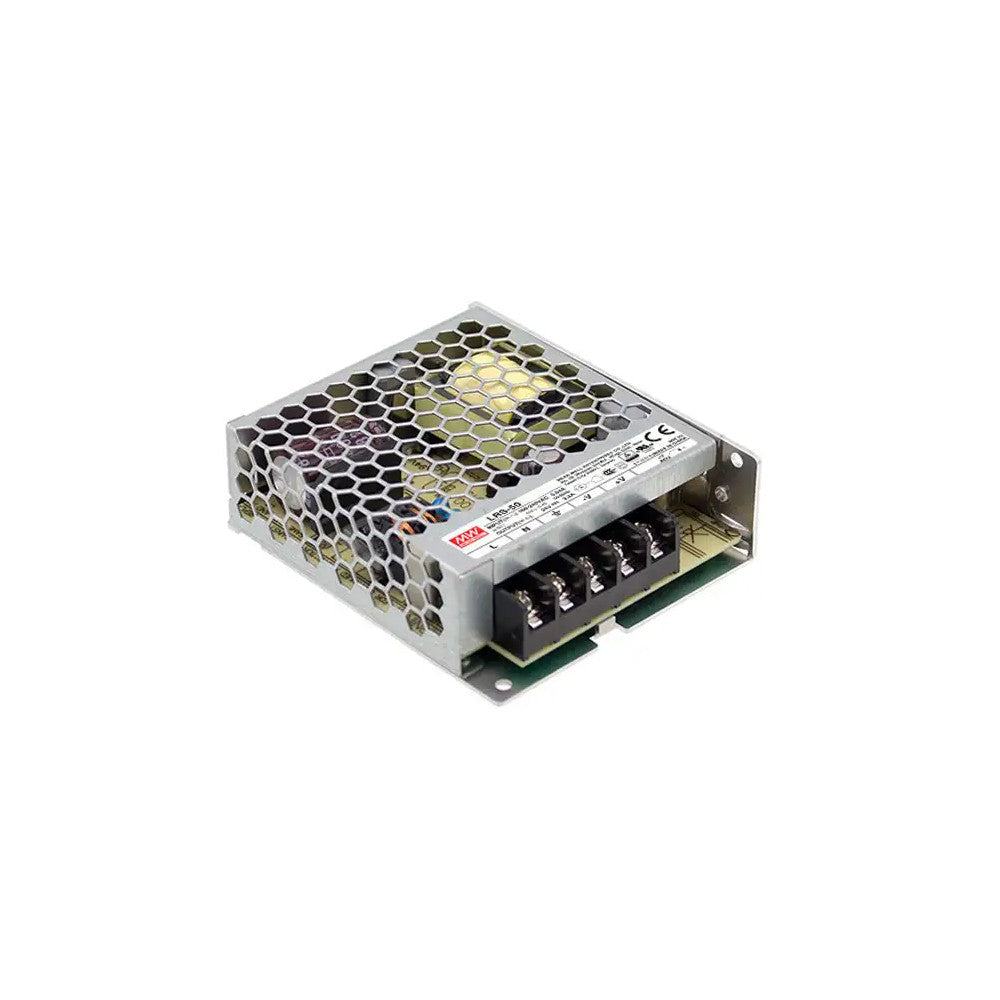

Transformador MEANWELL Entrada 85-264VAC Salida Aislamiento 3750VAC
32,13 €
32,13 €
Precio unitario
/
por
Impuesto incluido.
Envío calculado al finalizar la compra.
Modelo
LRS-35-12 12VDC 3A 36W EN60335-1/EN615558
LRS-75-24 24VDC 3,2A 76,8W EN60335-1/IEC/EN6155
LRS-75-12 12VDC 6A 72W EN60335-1/IEC/EN61558
LRS-35-5 5VDC 7A 35W EN60335-1/EN615558
LRS-50-24 24VDC 2,2A 52,8W EN60335-1/IEC/EN6155
LRS-35-24 24VDC 1,5A 36W EN60335-1/EN615558
LRS-75-5 5VDC 14A 70W EN60335-1/IEC/EN61558
LRS-75-48 48VDC 1,6A 76,8W EN60335-1/IEC/EN6155
LRS-50-12 12VDC 4,2A 50,4W EN60335-1/EN615558
LRS-50-5 5VDC 10A 50W EN60335-1/IEC/EN61558
LRS-50-48 48VDC 1,1A 52,8W EN60335-1/IEC/EN6155
LRS-75-15 15VDC 5A 75W EN60335-1/IEC/EN61558
Productos complementarios
Transformador MEANWELL Entrada 85-264VAC Salida Aislamiento 3750VAC Toda instalación LED vale lo que vale su fuente de alimentación. Este Transformador MEANWELL Entrada 85-264VAC Salida Aislamiento 3750VAC entrega tensión estable y protegida para que las tiras y luminarias rindan como el primer día.
Dimensionado correcto, trabajo silencioso y protecciones integradas: lo que no se ve, pero lo sujeta todo.
✨ Lo que lo hace especial
Certificados CE / ROHS / ISO9001 .
12 variantes disponibles: LRS-35-12 12VDC 3A 36W EN60335-1/EN615558, LRS-75-24 24VDC 3,2A 76,8W EN60335-1/IEC/EN6155, LRS-75-12 12VDC 6A 72W EN60335-1/IEC/EN61558, LRS-35-5 5VDC 7A 35W EN60335-1/EN615558, LRS-50-24 24VDC 2,2A .
🏠 Dónde usarlo
Alimentación de tiras LED de 12/24V.
Instalaciones de iluminación en muebles y rótulos.
Proyectos profesionales que exigen fiabilidad continua.
💡 Consejo Vetonek: Dimensiona la fuente con un 20% de margen sobre el consumo real de la tira: trabajará más fría y durará mucho más.
📋 Características técnicas
Tensión 85-264VAC
Protección IP20
Frecuencia 50/60 Hz
Temperatura de trabajo -20 a + 60 ºC
Material PVC/ ABS
Certificados CE/ROHS/ISO9001
Peso 0,2 kg
